Q5

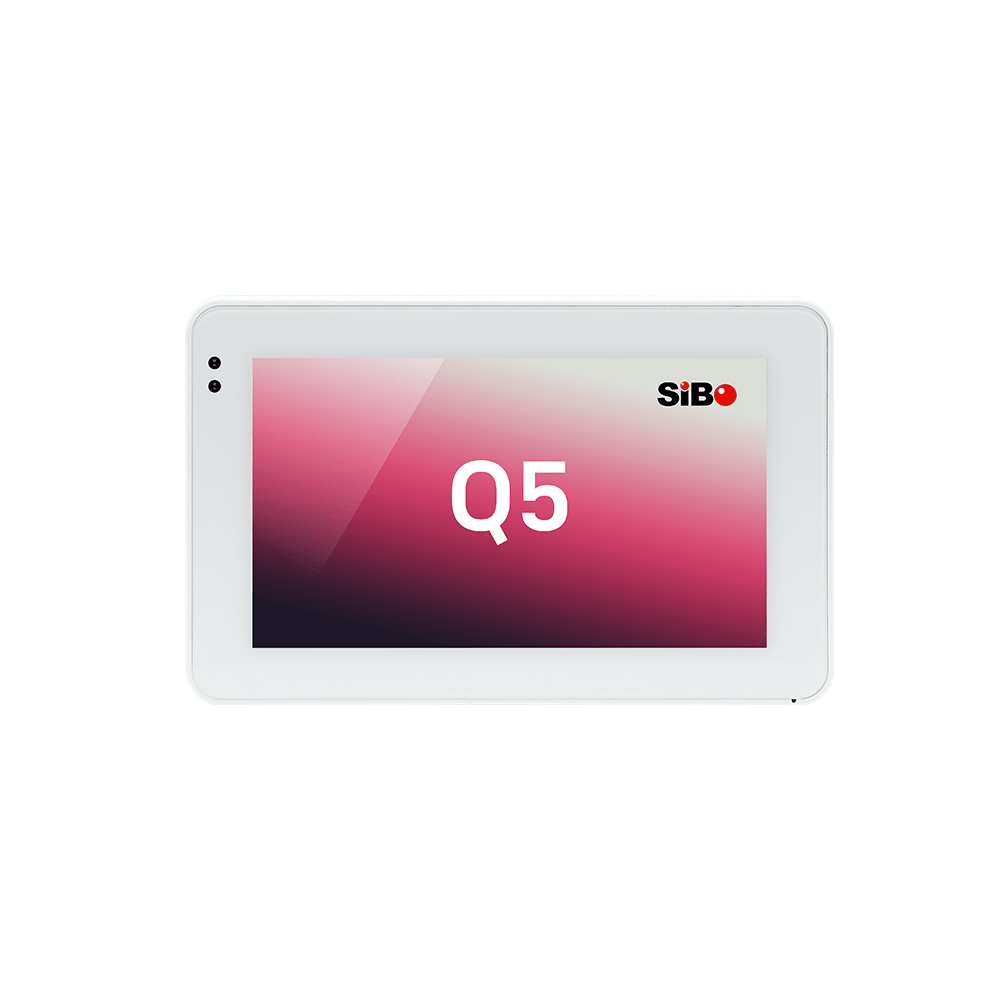

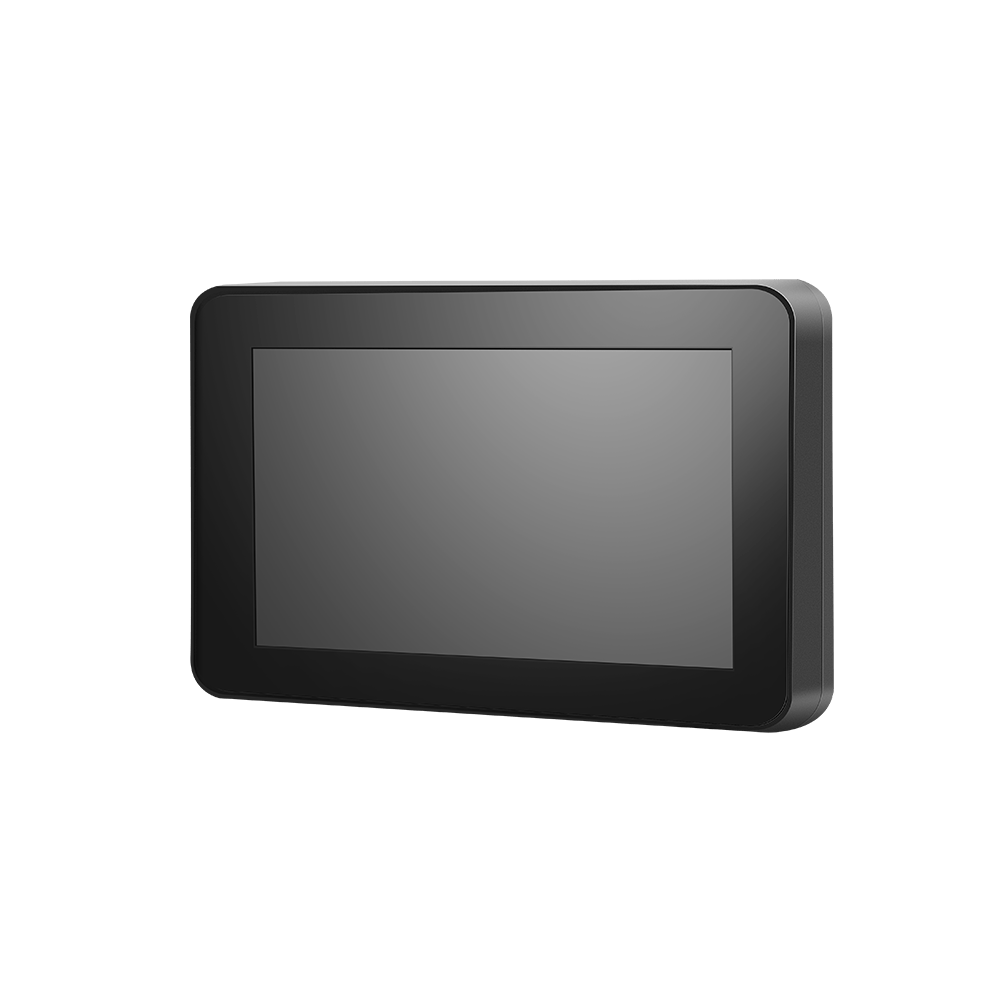

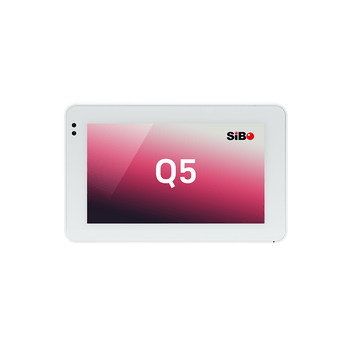

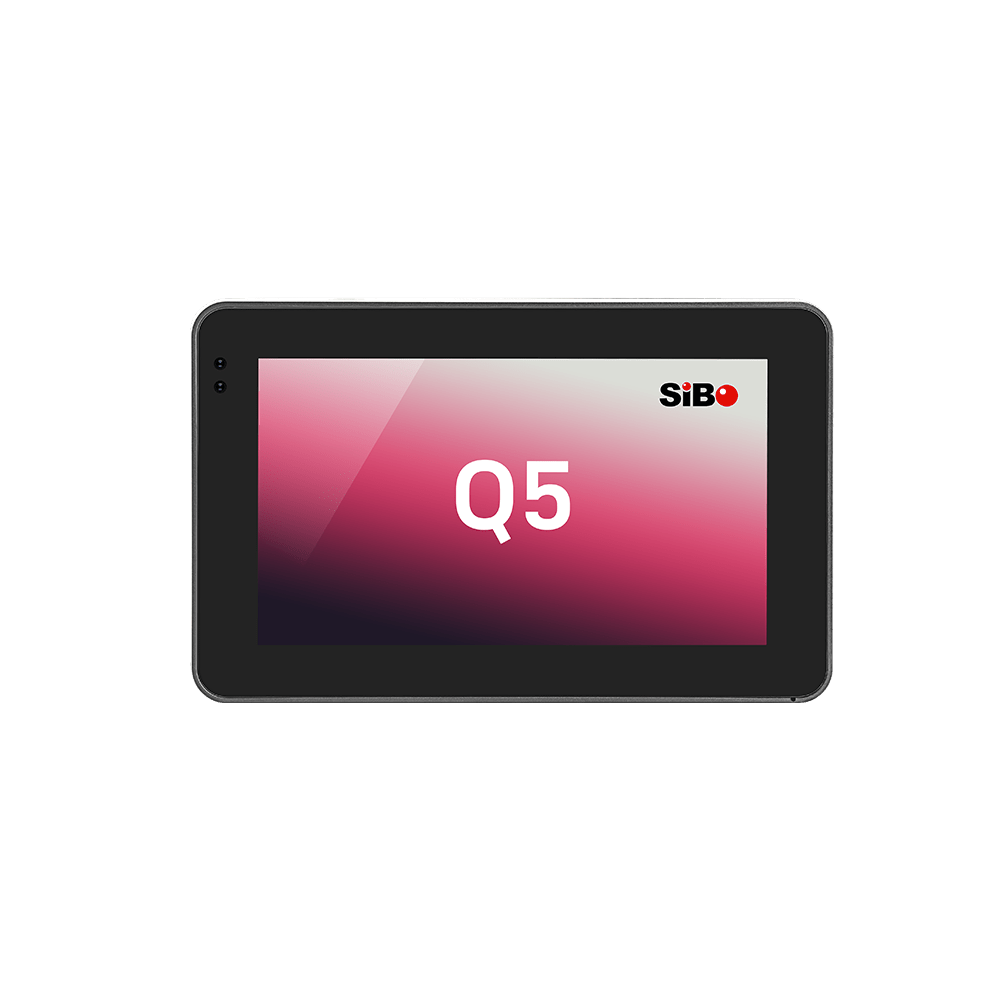

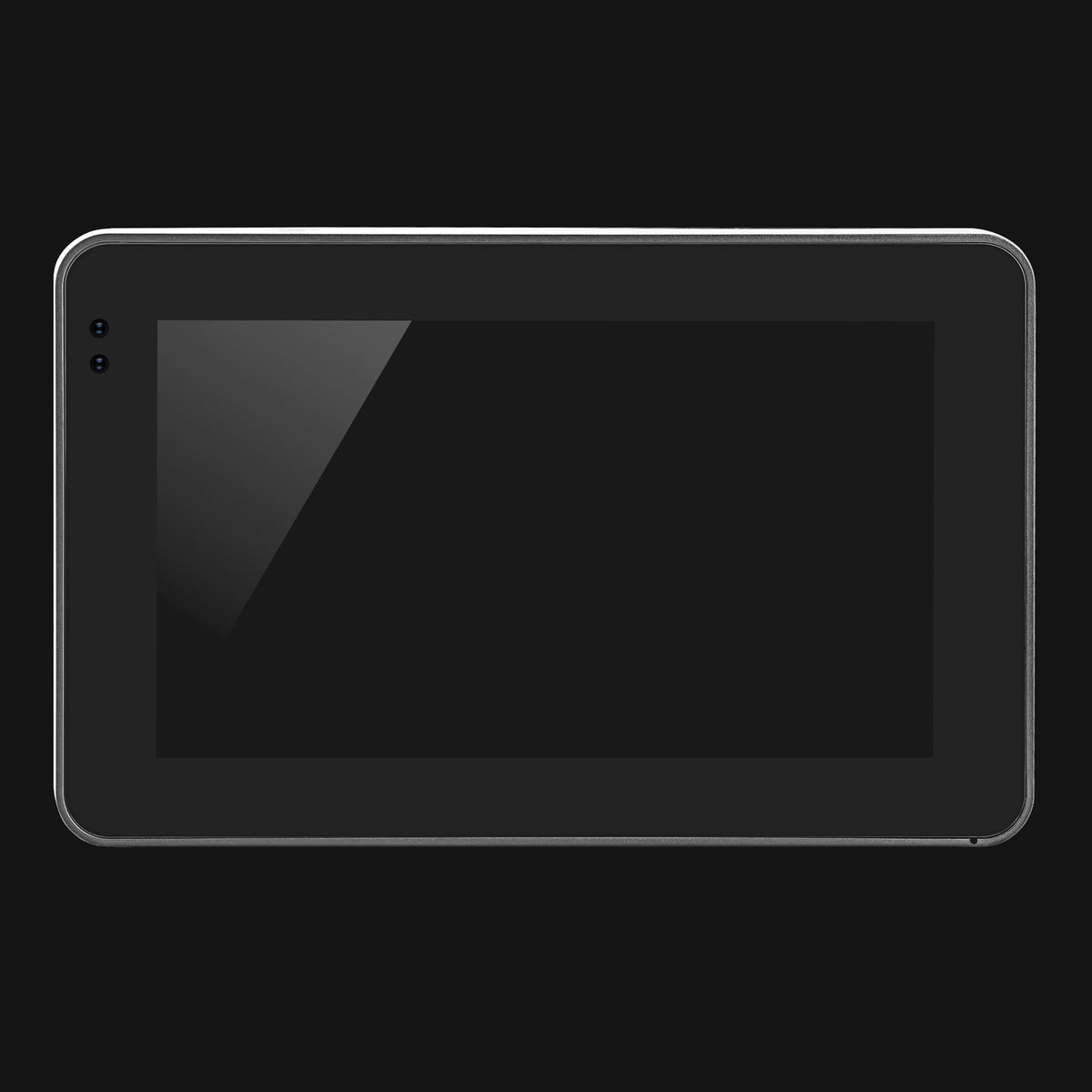

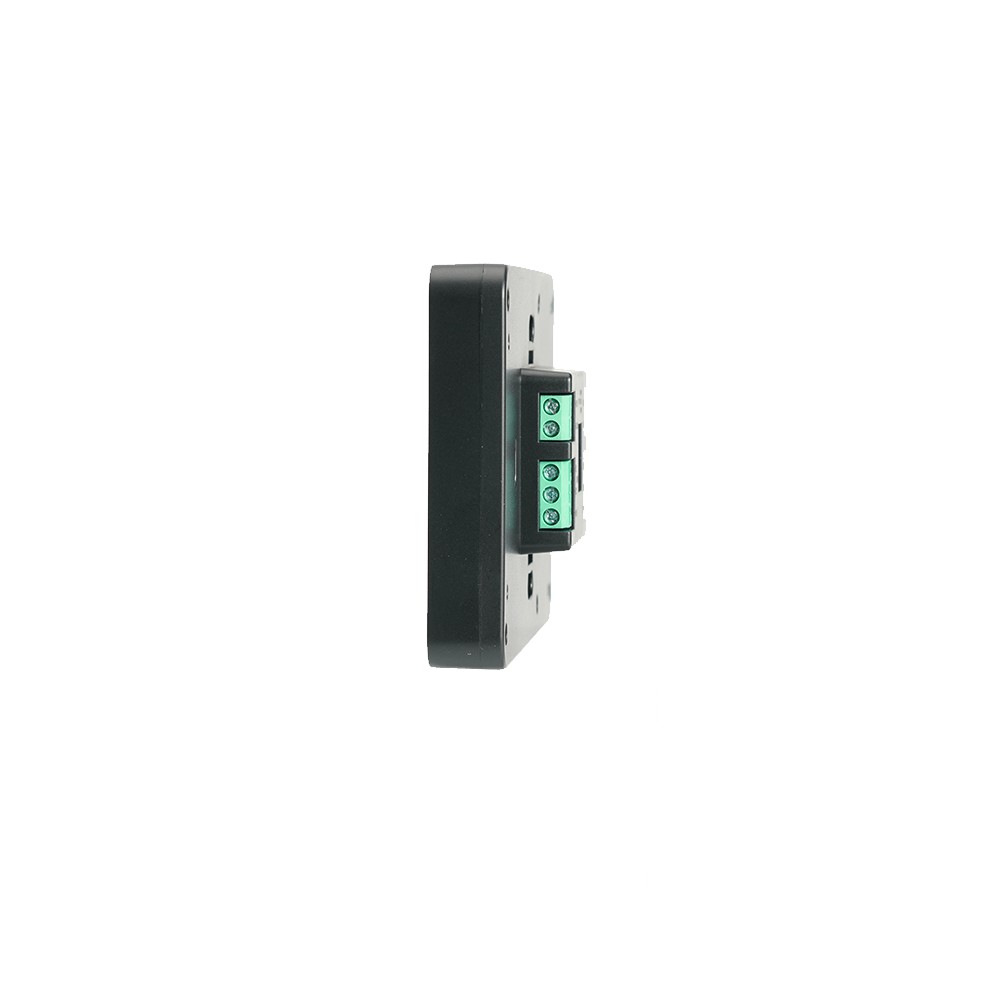

5-Inch Industrial Android 7.1 Tablet with IPS HD Display

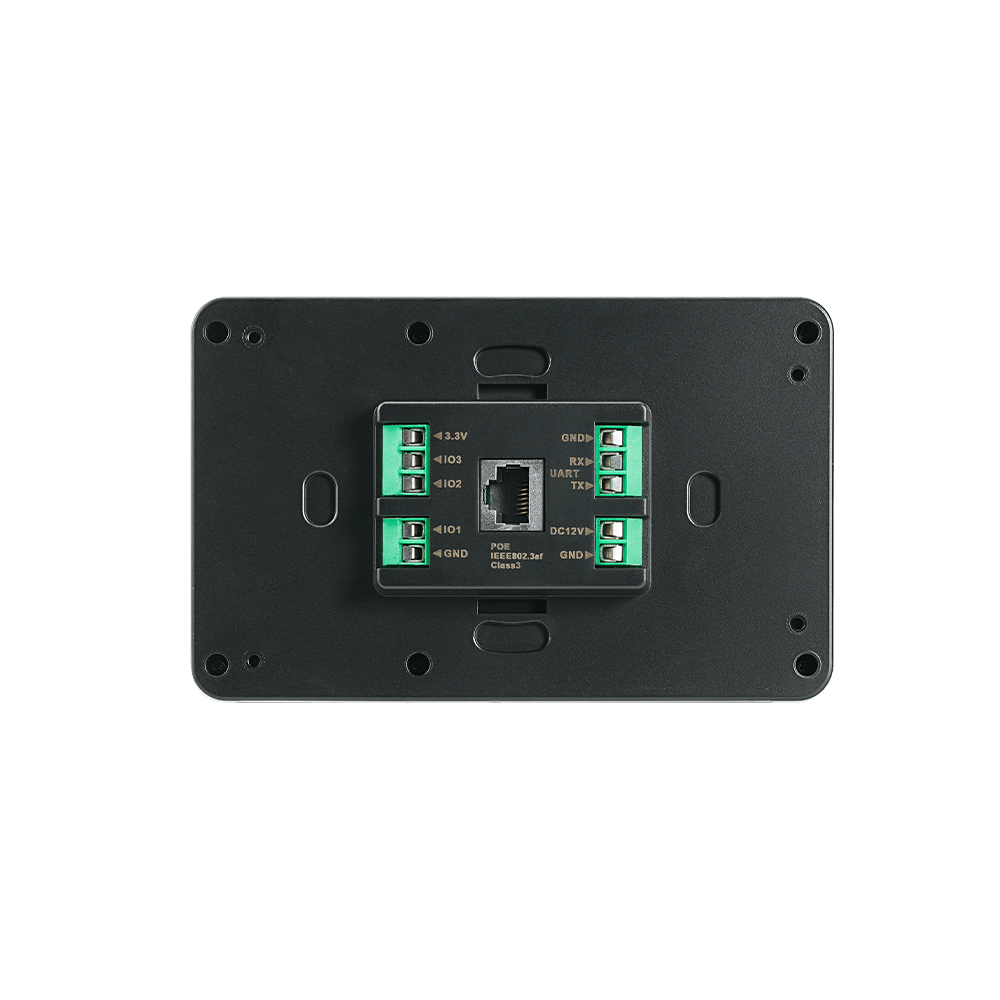

Q5 is a 5-inch Android tablet designed for professional applications such as access control, automated control, information scheduling, and embedded integration. Its 1280×720 IPS display delivers clear, bright visuals with wide viewing angles, while optional long-range PS and ALS sensors enable intelligent brightness adjustment. The device also includes built-in NFC for access badges, authentication, and check-ins, along with industrial interfaces such as RS485, RS232, UART, and GPIO for communication with external equipment. Demo application source code is provided to support fast secondary development and system integration.
Q5 supports Power over Ethernet (PoE), allowing power and data to run over a single cable for simpler installation. It offers flexible mounting options—including wall mounting, in-wall placement, and desktop installation—making it an adaptable choice for a wide range of environments.
Key Features:
-
Compact 5-inch
-
PoE Connectivity
-

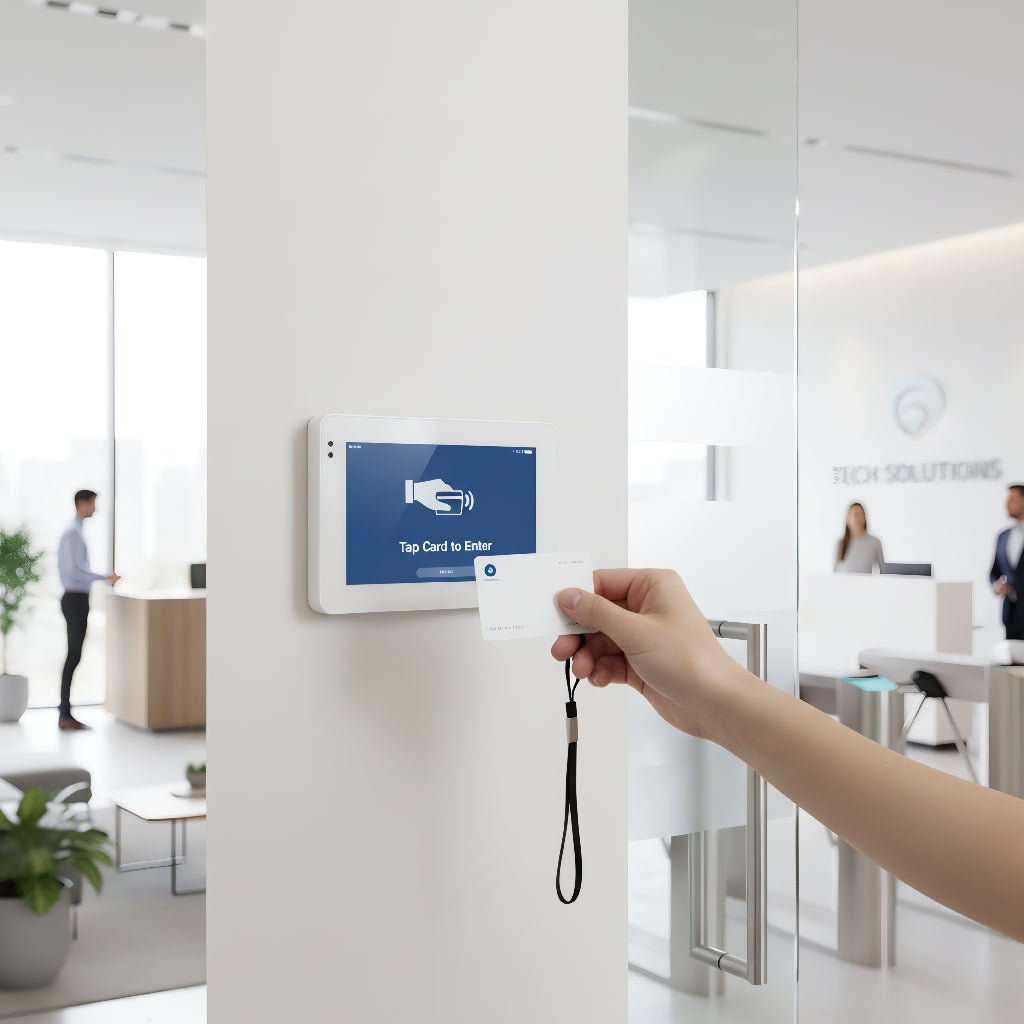

Built-in NFC
-
RS232/RS485
-
Versatile Mounting
Specifications
| CPU | Quad-Core ARM Cortex A7 CPU, 1.2Ghz |
|---|---|
| RAM (memory size) | 1GB |
| Internal Storage | 8GB |
| System | |
| Language | Support multi-languages |
Shipping & Warranty
Shipping and warranty terms vary by model and order size.
After you share which tablet you are interested in and the approximate quantity, our team will confirm the exact lead time, shipping costs, and warranty coverage for your order within 1 business day.

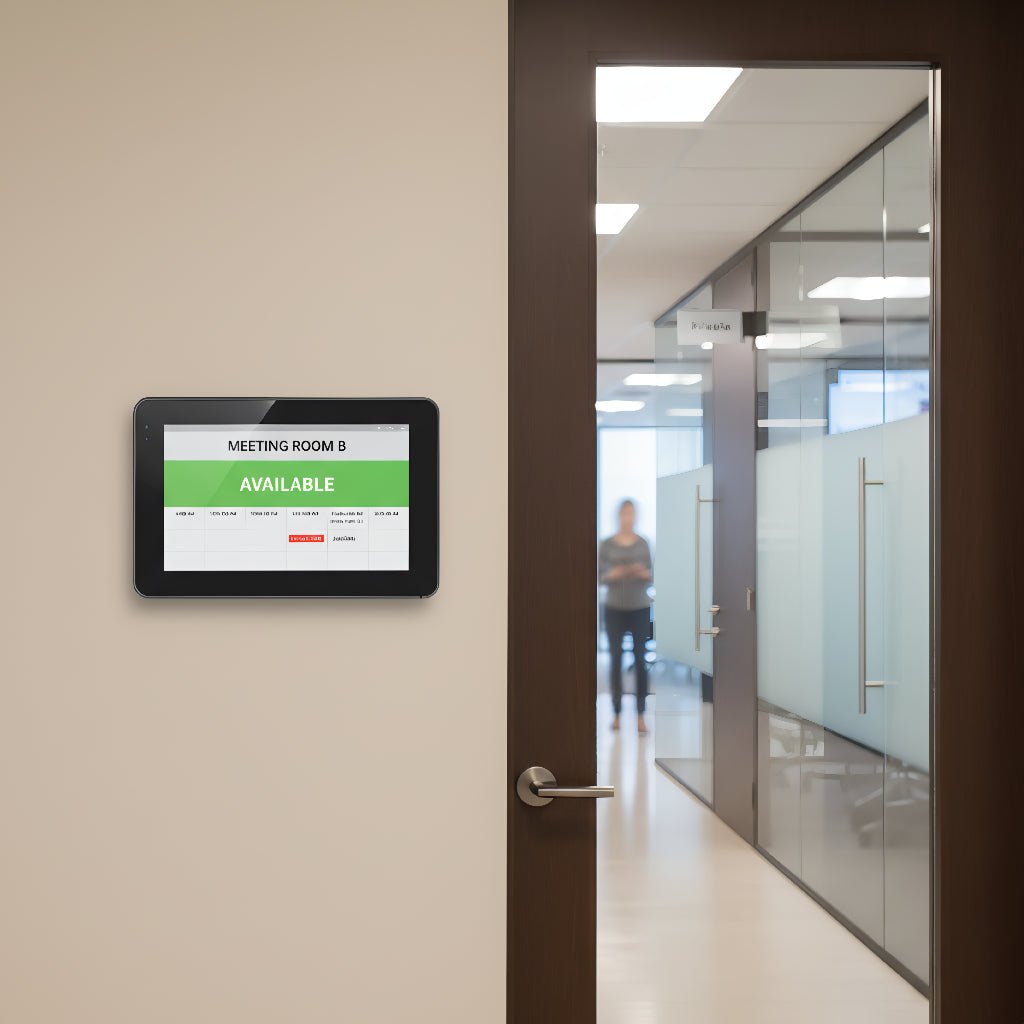

Applications
Key Feature and User Case
The video and use-case gallery below show how our tablets perform in live installations, helping you evaluate their integration and reliability in everyday use.
Smart Android tablets for every project
From compact panels to large-format dashboards, all models offer PoE, NFC, and integration options to fit your needs.
Full Specifications
This section provides an overview of the device’s core components and capabilities, including processor, memory, interfaces, and power options.
| CPU | Quad-Core ARM Cortex A7 CPU, 1.2Ghz |
|---|---|
| RAM (memory capacity) | 1GB |
| Nand Flash (Internal Storage) | 8GB |
| Operating System | Android 7.1 / 7.1.1 |
| Display Resolution | 1280 x720 |
| Screen Size | 5" |
| Touch Screen Type | Glass+glass touch panel, 5 points touch |
| Brightness (cd/㎡) | 350 cd/㎡ |
| Network | WiFi 2.4G, Bluetooth 4.0, Ethernet RJ45 |
| PoE | IEEE802.3af, 48V |
| Optional Functions | Built-in NFC reader, Proximity and ambient light sensor |

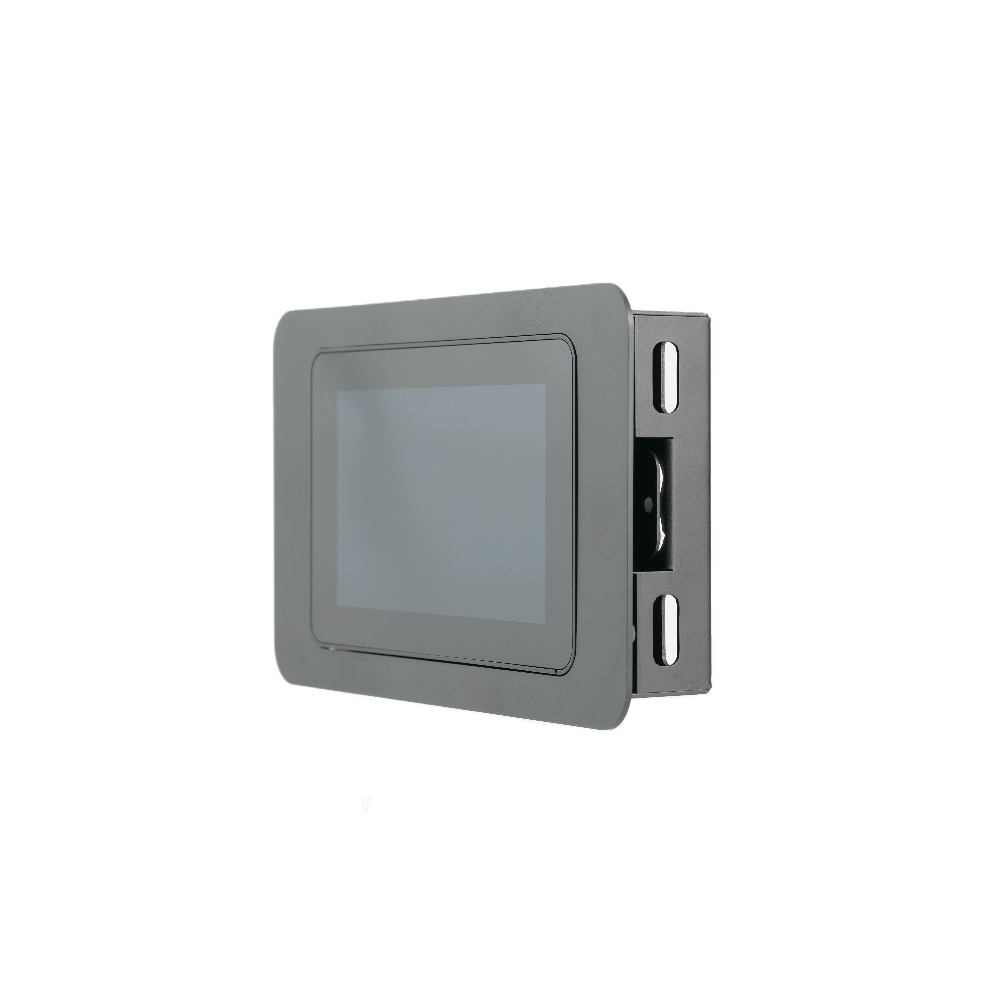

| Mounting Options | In-wall flush mount |
| Language | Support multi-languages |
Frequently Asked Questions
Commonly asked questions by our customers answered for your convenience
Can we request a custom Android version (e.g. Android 9, 11, 13)?
Yes. We can provide different Android versions based on your project needs, such as Android 9, 11, or 13.
Do the tablets support both PoE and DC power?
Yes, the tablets can be powered either through PoE (Power over Ethernet) or with a DC adapter.
Do the tablets support Google Play services and app downloads?
Yes, the tablets come with Google Play Store pre-installed, and you can download new apps directly from it.
Can my software start automatically when the tablet powers on?
Yes. The tablet automatically turns on when connected to power, can display your custom startup logo, and launch your software right away. It can also be set to run only your software, so end users cannot exit the application.
Can the tablets display our company logo on startup?
Yes. The tablets can be customized to show your company logo during startup.
